Maplan Vertical

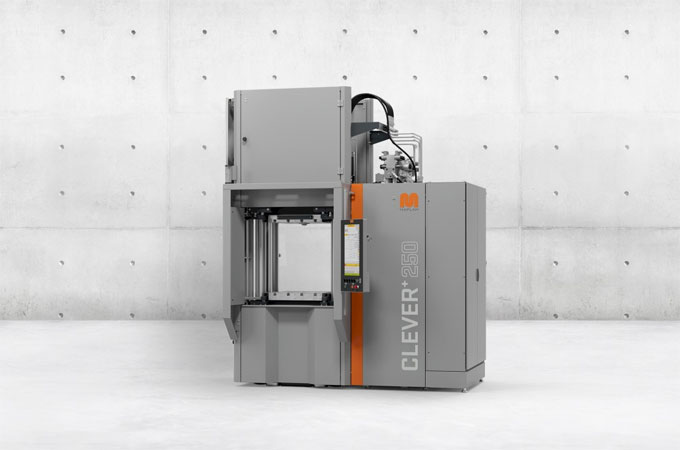

CLEVER+ Come prepared for a variety of applications with the help of the vertical CLEVER+ injection moulding machine in the basic model from 160 to 400 tons. You can also take advantage of numerous MAPLAN+ benefits with the CLEVER+ series.
Advanced. Features.
| Types | Clamping Force | Injection Volume | Heating Plate Dimension | |
|---|---|---|---|---|
| [kN] | [cm³] | Standard [mm] | Maximum [mm] | |
| CLEVER+ 160 | 1600 | 200 – 1000 | 450 x 510 | 535 x 560 |
| CLEVER+ 250 | 2500 | 1500 – 2600 | 560 x 650 | 670 x 650 |
| CLEVER+ 400 | 4000 | 3500 – 4000 | 710 x 800 | 800 x 810 |
For the production of articles for:
Automotive industry, household and white goods, sanitation, oil production, medical technology, railways, electrical engineering, alternative energy and custom-made products.
Typically produced with CLEVER+:

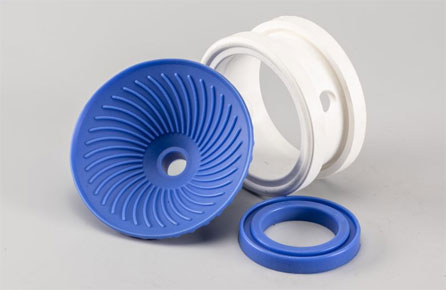

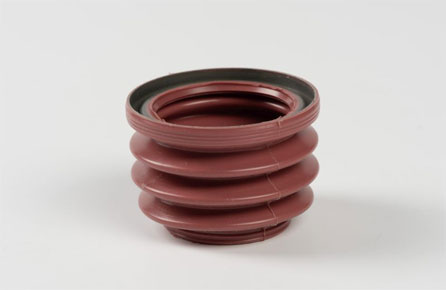

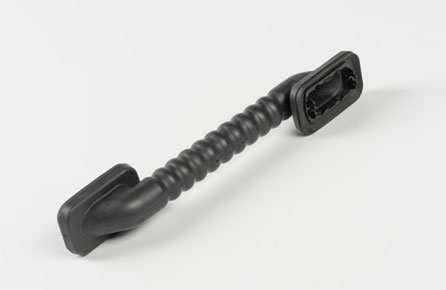

Simple rubber-metal parts / inserts etc.
