Easy+

C-Frame

Providing maximum accessibility to the working area

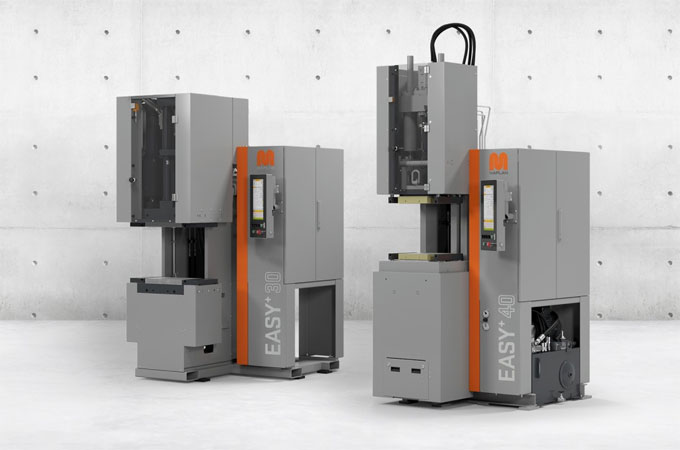

Our tried and tested vertical EASY+ C-frame injection moulding machines are compact, perfectly suited to produce specific rubber articles, including moulded part corners and small batches, and are available in clamping forces ranging from 20 to 100t.

Different machine concepts can be implemented depending on theintended application:
1.Top – Injection from above, closing from below
2. Bottom – Injection from below, closing from above
3.Top Top – Injection and closing from above – with fixed machine table.

The unique design of this machine truly comes into its own when connecting elastomerprofiles or specially automated processes. Optionally available: 59cm3 and 150cm3 injection units for TPE processing.

Advanced. Features.

Highlights

Intelligent one-piece design with very small footprint
Ideal accessibility from 3 sides
Ergonomic working height
Many optional extras available
Simple operation with the MAP.commander C600 control unit
Comes with many MAPLAN+ benefits

New edition

EASY+ TTPE 85/50

For TPE or elastomer
Optimised for strength, stiffness & weight
Fast and energy-saving
New MAP.commander C60 control: intelligently integrated in the control cabinet

Models

Types	Clamping Force	Injection Volume	Heating Plate Dimension
	[kN]	[cm³]	Standard [mm]
EASY+ T 30	300	50 – 250	255 x 255
EASY+ T 40	400	50 – 250	255 x 255
EASY+ T 100	1000	50 – 400	500 x 400
EASY+ B 30	300	100 – 200	255 x 255
EASY+ B 40	400	100 – 200	255 x 255
EASY+ TT 20	200	50 – 200	300 x 300
EASY+ TT 30	300	50 – 250	300 x 300

For the processing of:
Rubber, HTV silicone, TPE

For the production of articles for:
automotive industry, household & white goods, medical engineering.

Typical articles:

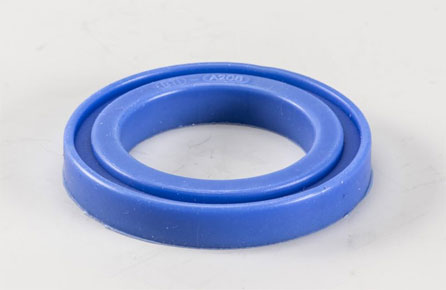

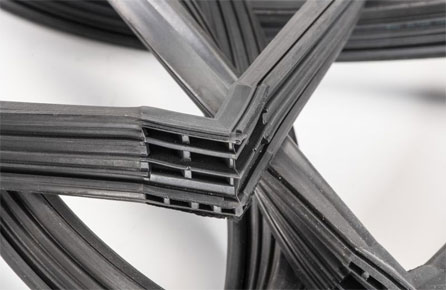

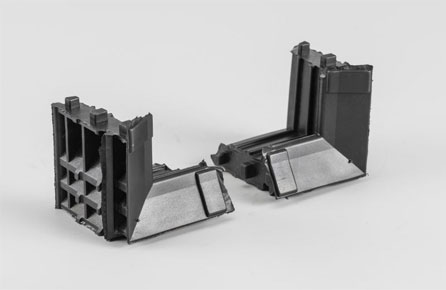

Small molded parts, low unit quantities, corner joint production, boot lids, engine bonnets, connection of elastomer profiles etc.
