Maplan Vertical

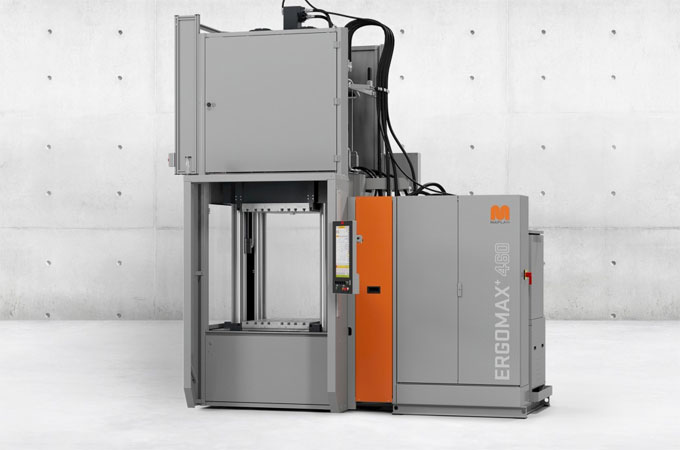

We are pushing boundaries when it comes to size, precision and processing quality with the help of our new vertical ERGOMAX+ series, whether in the fully or semi-automatic production of elastomer articles. The entire ERGOMAX+ series comes equipped with our energy-saving servo-hydraulic MAP.cooldrive as well as our high-precision MAP.fifo injection unit.
Advanced. Features.
| Types | Clamping Force | Injection Volume | Heating Plate Dimension |
|---|---|---|---|
| [kN] | [cm³] | Standard [mm] | |
| ERGOMAX+ 460 / 490 | 4600 / 4900 | 1500 – 8500 | 710 x 800 |
| ERGOMAX+ 570 | 5700 | 3500 – 17500 | 810 x 1000 |
| ERGOMAX+ 720 | 7200 | 6000 – 17500 | 900 x 1000 |
| ERGOMAX+ 900 | 9000 | 10500 – 17500 | 1100 x 1350 |
For the fully automatic production of articles for:
Automotive industry, household and white goods, sanitation, oil production, medical technology, railways, electrical engineering, alternative energy and custom-made products.
Typically produced with ERGOMAX+:

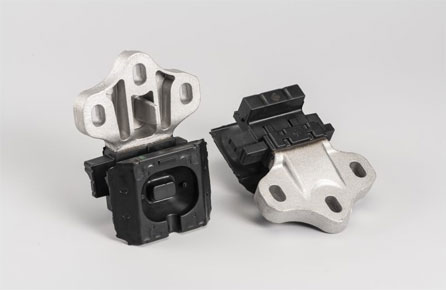

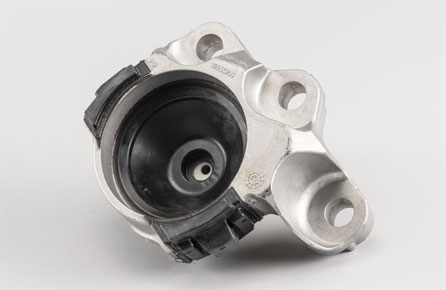

Rubber-metal parts / inserts
