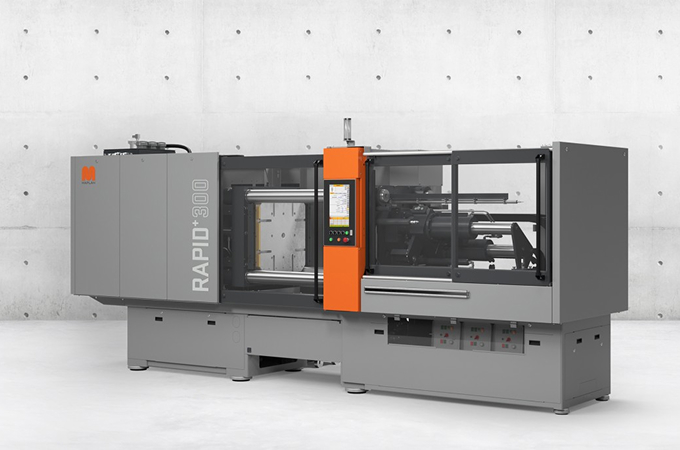

Maplan Horizontal
Powerful and fast – the horizontal RAPID+ injection moulding machines from MAPLAN are designed for high speeds and automated processes. They support all common demoulding and automation concepts for fully automatic production, thereby significantly reducing personnel costs. A true all-rounder with a proven track record.
Advanced. Features.
New, fast & energy-efficient
| Types | Clamping Force | Injection Volume | Heating Plate Dimension |
|---|---|---|---|
| [kN] | [cm³] | Standard [mm] | |
| RAPID+ 200 | 2000 | 200 - 1000 | 510 x 510 |
| RAPID+ 300 | 3000 | 200 - 2600 | 670 x 670 |
| RAPID+ 400 / 460 | 4000 / 4600 | 200 - 4000 | 875 x 875 |
| RAPID+ 570 / 630 | 5700 / 6300 | 200 - 8500 | 810 x 980 |
| RAPID+ 800 | 8000 | 3500-8500 | 1000 x 1100 |
Processing of:
Standard rubbers (NR, EPDM, NBR, CR, …), solid silicone, LSR and technical elastomers like AEM, HNBR, ECO, ACM, FVMQ, …
Fully automatic production of articles :
Automotive industry, household and white goods, sanitary area, oil producing industry, medical technology, railway and custom-made products.
Typical articles:

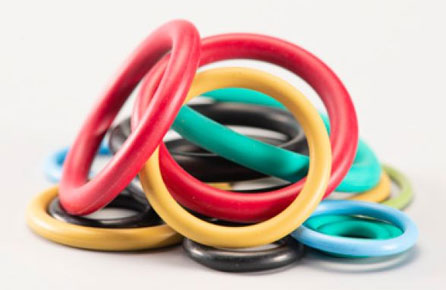

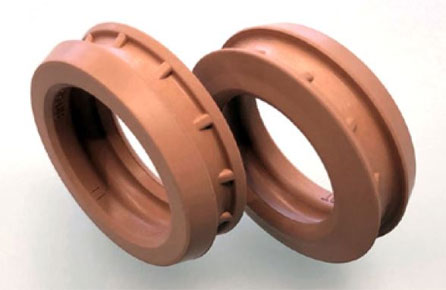

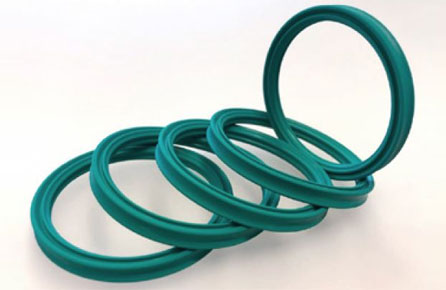

Seals and other precise small parts in large quantities
