MAPLAN Robotic Portfolio

Ensure quality and optimise production costs

As part of its 360° system provider strategy, MAPLAN is supplementing its automation portfolio with robotic systems for every application. The two model-series MAP.mate and MAP.mate SCARA are not only compact, easy to integrate and fast, but also cover large working areas. Robots manage to move very small and large parts with high speed and precision. In addition, they are becoming smaller, more flexible, easier to program and more cost-effective.

  • High Precision
  • Long Service Life
  • Low Maintenance
  • Safe Operation
  • Easy Integration
  • Maximum Output

NEW

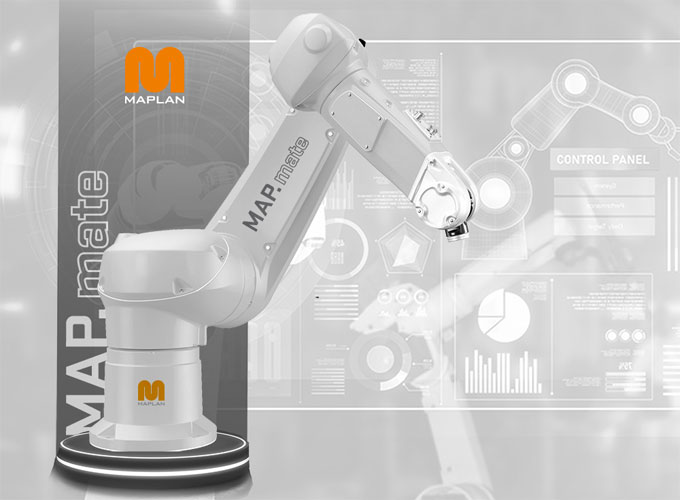

MAP.mate 6-axis robot

An appealing, reliable companion for every application

The MAP.mate 6-axis series achieves top performance in terms of dynamics and flexibility and can be used for a wide range of applications in the X-Y-Z axis. Depending on the model, a MAP.mate moves relatively large components, entire tools or centre plates with a weight of up to 80 kg. In particular, the large working radius, coupled with compact design, guarantees maximum flexibility and easy integration – even in limited space conditions. This ensures a maximum utilisation of the production cell. The integrated safety functions enable safe human-machine interaction at maximum productivity.



Maplan Robotics (Section 2)

Models

TypeReachLoad capacity
 [mm][kg]
MAP.mate 405151
MAP.mate 60670-9204,5
MAP.mate 901000-145014
MAP.mate 140151040
MAP.mate 1601710-201040
MAP.mate 2002194-2594130

JETZT NEU

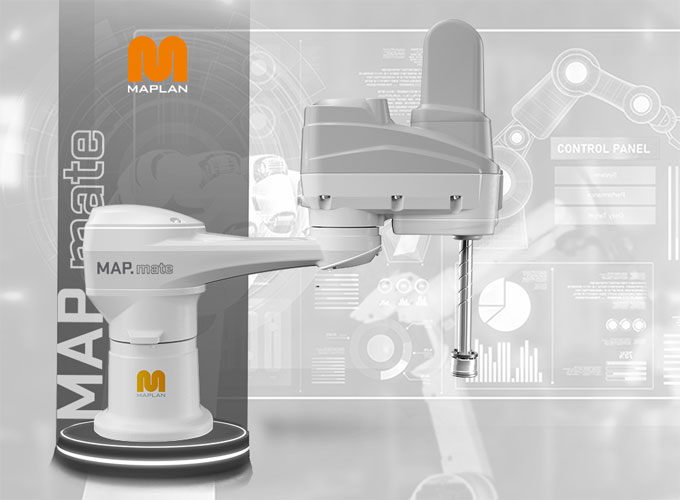

MAP.mate SCARA robot

Ultra fast and economical

MAP.mate SCARA speeds up the pace! SCARA robots are a popular option for small robotic applications in X-Y axis. The MAP.mate SCARA four-axis robot series with special drive technology enables the shortest cycle times with high repeatability. With a lightweight, rigid structure it is highly dynamic and agile. It impresses with exact path accuracy at high drive frequency. The agile four-axis models are particularly suitable for tasks that require maximum speed: Loading and unloading, pick & place and many more. And they are also economical: with energy regeneration at every axle deceleration and various energy-saving or sleep modes, up to 40 % energy can be saved.

Maplan Robotics (Section 4)

Models

TypeReachLoad capacity
 [mm][kg]
MAP.mate SCARA 404608,4
MAP.mate SCARA 606208,4
MAP.mate SCARA 808008,4
MAP.mate SCARA 10010008,4
